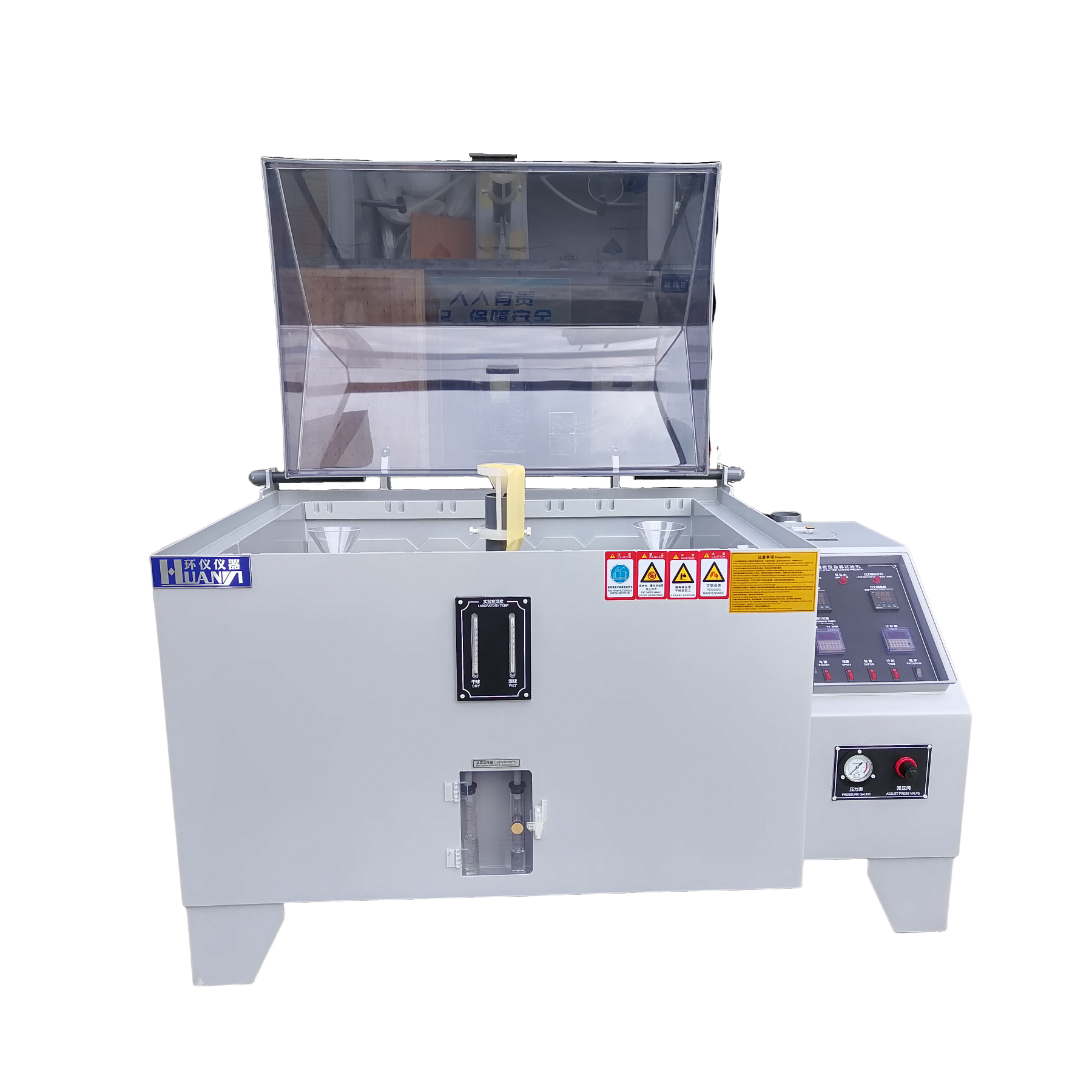

Salt Spray Corrosion Test Chamber: Giving You More Confidence in Vehicle Quality

Salt spray corrosion test chambers simulate corrosion conditions such as coastal salt spray, winter road de-icing salt, and industrial air pollution. By accelerating corrosion, they can quickly verify the corrosion resistance of automotive parts, coatings, and platings in the laboratory. They are core reliability testing equipment for vehicle R&D, incoming parts inspection, and supplier access, and are widely used in both traditional fuel vehicles and new energy vehicles.

I. Main Test Components

1. Body and Exterior Parts

Body sheet metal, electrophoretic paint coverings, doors, engine compartment sheet metal; exposed parts such as chrome grilles, door handles, rearview mirror brackets, decorative trim, and wheels. Assessment: Resistance to blistering, discoloration, and rust in paint, electrophoretic coatings, and electroplating; emphasis is placed on evaluating appearance quality and coating adhesion.

2. Chassis and Braking Suspension System (High-Risk Safety Components)

Subframe, control arms, shock absorbers, stabilizer bars, brake calipers, steering knuckles, oil lines, exhaust pipe brackets, and underbody protection metal parts. Not only is external rust assessed, but also post-corrosion strength and performance are crucial to prevent component breakage and jamming due to rust.

3. Fasteners (Bolts, Nuts, Washers, Pipe Clamps)

A large number of galvanized, Dacromet, and nickel-plated fasteners are frequently tested in Salt Spray Tests. To prevent bolt corrosion, breakage, and torque decay, which could lead to loosening and detachment of components; high-strength bolts of grade 10.9 and above must also be designed to withstand the risk of hydrogen embrittlement under salt spray conditions.

4. Automotive Electronics and Connectors

Connectors, sensors, ECU housings, radar metal contacts, and wiring harness terminals. Salt spray corrosion can cause increased contact resistance and signal interruption; high-voltage connectors, battery pack housings, battery brackets, and motor housings in new energy vehicles must undergo salt spray testing to avoid the risk of leakage due to corrosion.

5. Engine Compartment Internal Components

Alternator, starter, air conditioning compressor housings, and pipe joints must withstand the effects of mud, water, and salt spray splashes.

II. Commonly Used Salt Spray Test Methods in the Automotive Industry

1. Neutral Salt Spray (NSS): GB/T10125-2021, ISO9227, 5% NaCl, continuous spraying at 35℃. Widely used for corrosion testing of chassis components, fasteners, and body steel plates.

2. Copper-Accelerated Acetic Acid Salt Spray (CASS): Faster corrosion rate, often used for evaluating chrome-plated trim parts and bright-coated parts.

3. Cyclic Corrosion Test (CCT): Salt spray → wet heat → dry cycle, simulating the real-world alternating wet and dry driving environment. Standards include SAE J2334, Volkswagen VW50097, etc. This method is increasingly being adopted by automakers, and the test results have a higher correlation with actual outdoor use.

III. Application Scenarios Throughout the Process

1. R&D Stage: Compare different substrates, coatings, and spraying processes to select anti-corrosion solutions; identify vulnerable points prone to corrosion, such as welds and edges, and optimize the design in advance to reduce the risk of vehicle recalls due to rust later.

2. Incoming Material Inspection and Mass Production Quality Control: Component suppliers conduct factory tests according to OEM specifications; salt spray reports are an important part of PPAP delivery documents; OEMs conduct regular random inspections of supplier components to control batch consistency.

3. Failure Analysis: When rusted or faulty parts appear in the market, salt spray testing reproduces the corrosion phenomenon to pinpoint whether the problem lies in materials, coatings, or processes.

4. New Energy Vehicle Specific Verification: After salt spray testing, the insulation and withstand voltage performance of battery pack casings, battery brackets, and high-voltage connectors must be verified to ensure electrical safety.

IV. Industry Value

1. Accelerated Testing: Several days to hundreds of hours of laboratory testing are equivalent to several years of actual outdoor corrosion, significantly shortening the vehicle development cycle and eliminating the need for long-term outdoor exposure testing.

2. Safety Assurance: Corrosion of the chassis, fasteners, and high-pressure components directly affects driving safety; salt spray testing identifies potential failure risks in advance.

3. Compliance and Market Access: Meets national standards, international standards, and the specifications of major OEMs, supporting parts supply and vehicle export certification.
